I am an Amateur Radio operator with callsign AB9BH, and I hold an Extra class license. I got my Technician license in 2000, and I upgraded to Extra in 2001, back in the old days when one still had to pass a Morse Code test at five words per minute. I was mostly inactive between 2003 and 2021 aside from some repeater operation and mostly failed experiments with APRS and the International Space Station. I also hold GMRS license WQRM321 (really).

Current station

After moving to Greenmore House in Shoreline, Washington in early 2021, I wanted to set up a real ham radio station, but taking a long term view, I knew that I needed to address the fundamentals first. Thus, I first built a redundant DC power system that is powered both by the grid and by battery so that the function of my station and other critical equipment will be unaffected by power outage. Initial operation during 2021 was made using a Buddipole antenna that I set up occasionally.

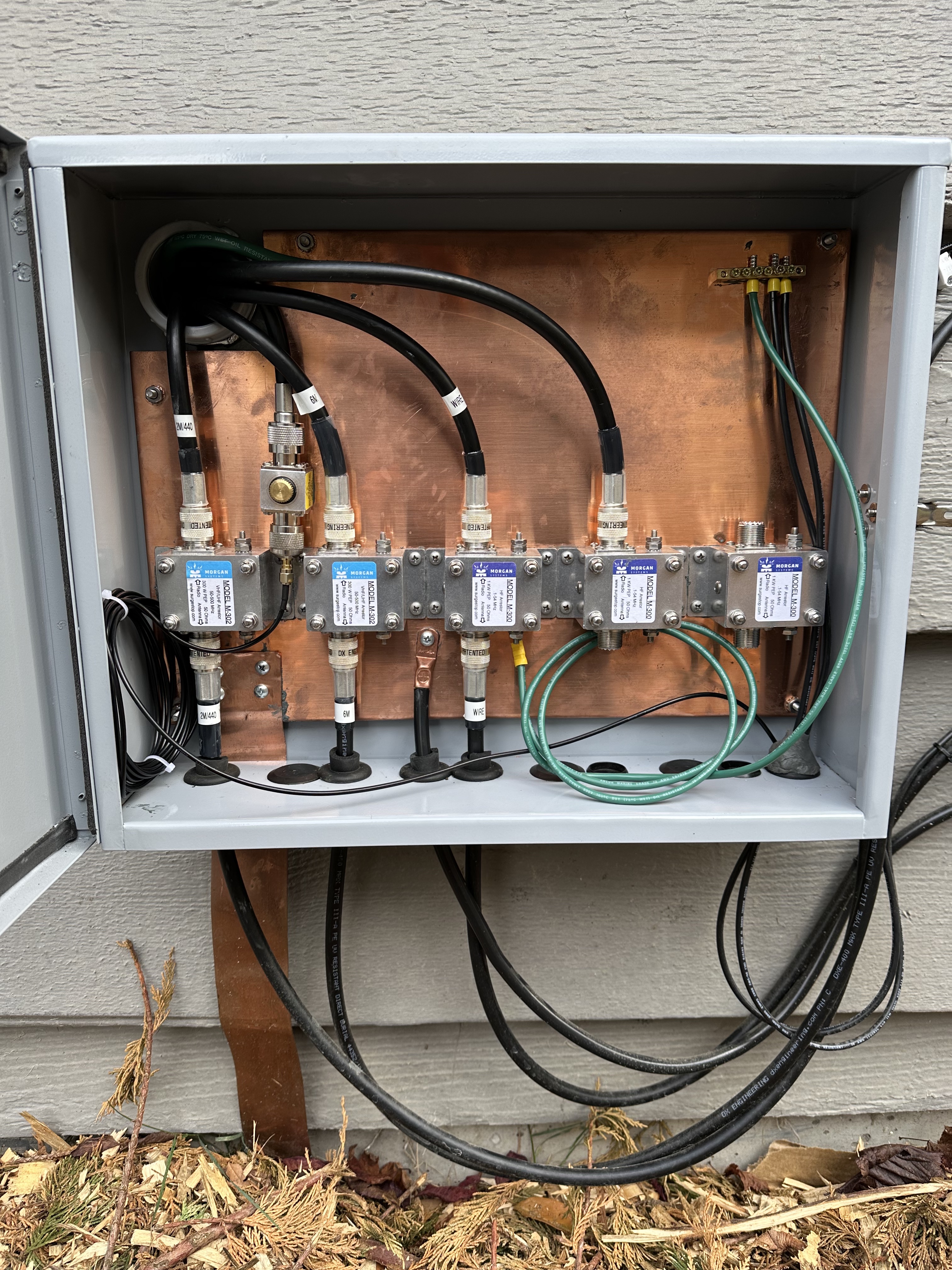

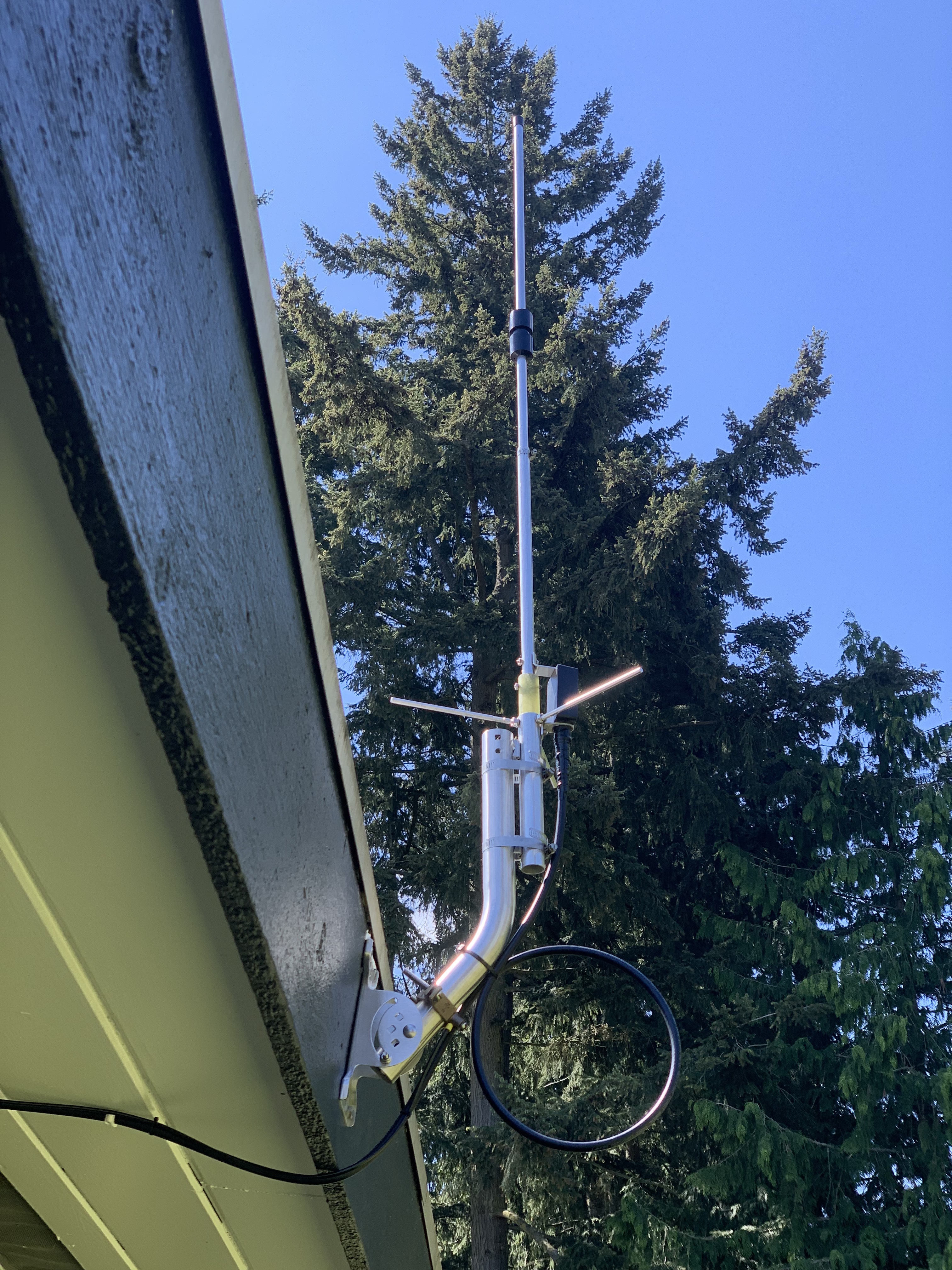

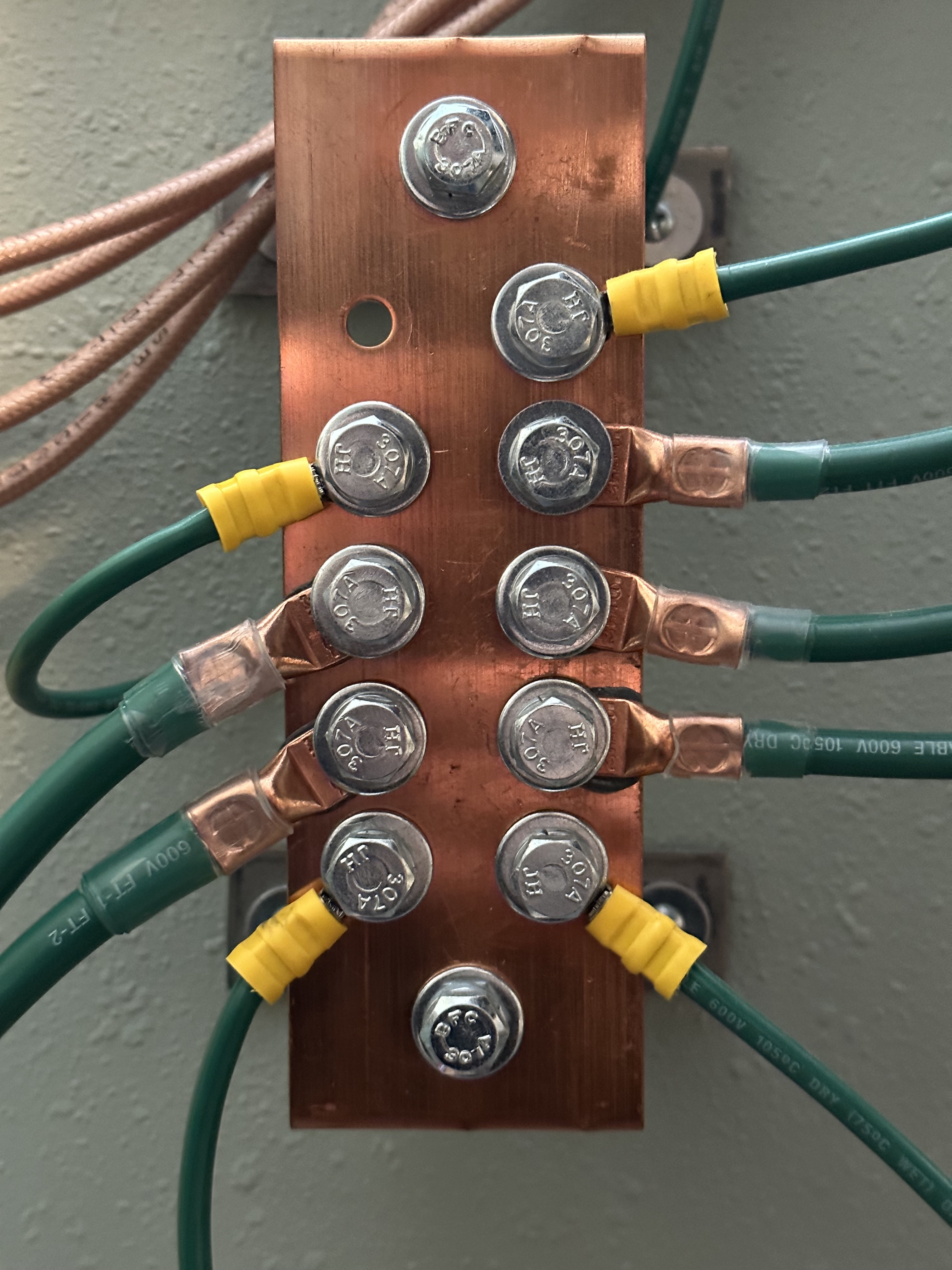

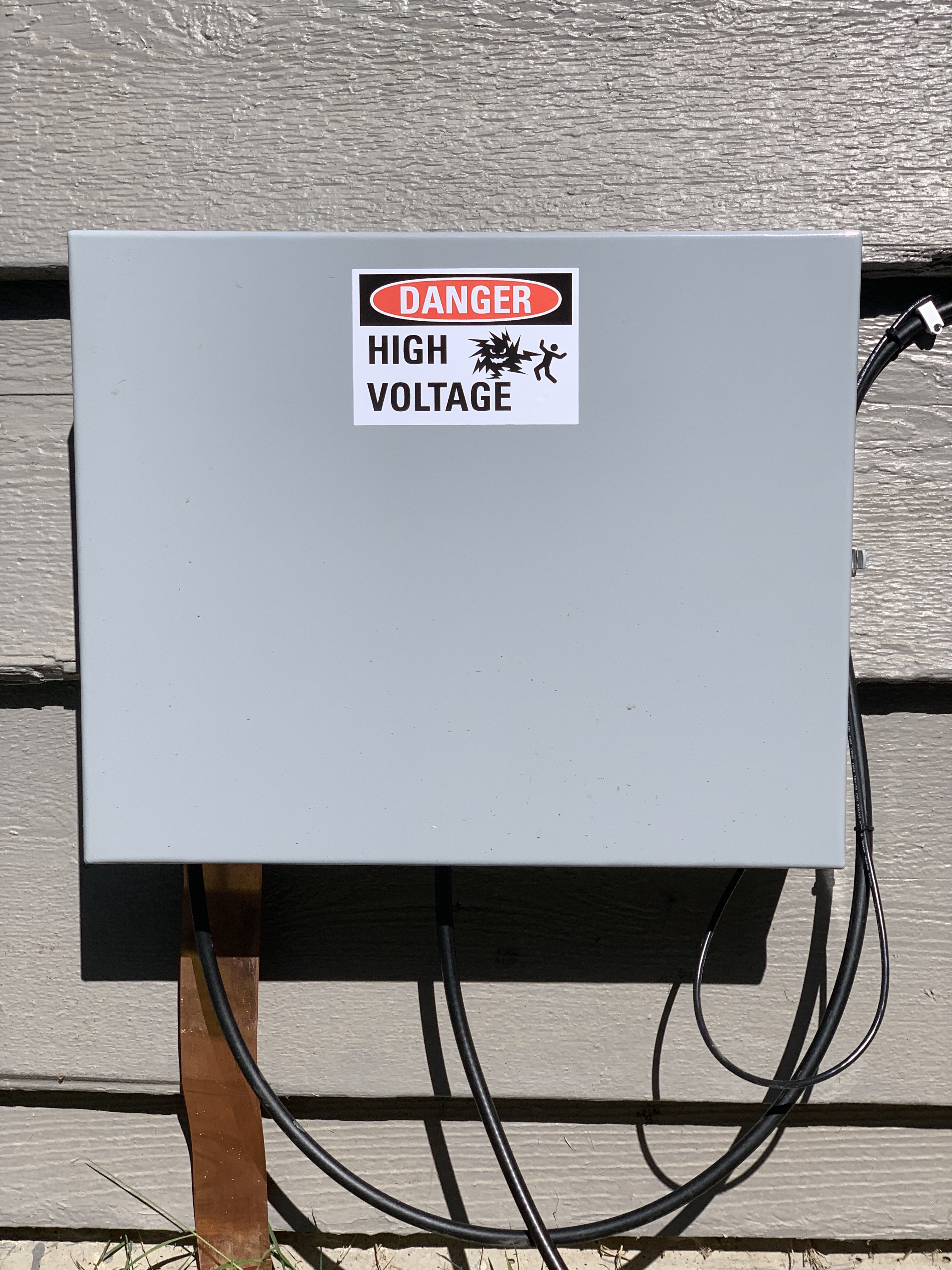

In 2022, I started pursuing construction of the station more seriously. I started by having electricians install, ground, and bond an entrance panel for antenna feedlines; then I brought ground inside to a wall-mounted ground bar. Immediately, Buddipole operation was greatly facilitated, for I no longer had to run a feedline out the window to operate, and I could deploy the antenna in dipole configuration in about 10 minutes. Next, for local communications, I installed a 2m/440 antenna; getting that antenna outside greatly reduced noise and improved the quality of received signals on the 2-meter band. After that, I installed an initial end-fed wire antenna for HF and a small, two-element beam for 6 meters (fixed, with no rotator). Using this setup coupled with occasional Buddipole deployments, I was able to complete several operating awards within only six months.

Operating awards, endorsements, and totals

• DXCC Mixed #68507 — 150 entities — 182 confirmed
• DXCC Digital #9302 — 100 entities — 164 confirmed
• DXCC 15M — pending: 20M, 17M, 10M
• VUCC 50 MHz #3535 — 325 grids — 337 confirmed
• WAS Mixed #65706 — 40m, 30m, 20m, 17m, 15m, 10m
• WAS Digital #5684 — 40m, 30m, 20m, 17m, 15m, 10m, FT8, FT4
• WPX Mixed #4463 — 1300 prefixes, 20m, 17m, 15m, 10m, 6m, NA, SA, EU, AS, OC
• WPX Digital #1787 — 1200 prefixes, 20m, 17m, 15m, 10m, 6m, NA, SA, EU, AS, OC

Selected contest scores

• 2022 ARRL June VHF — SO3B — 3rd place Western Washington section — 2,108 points

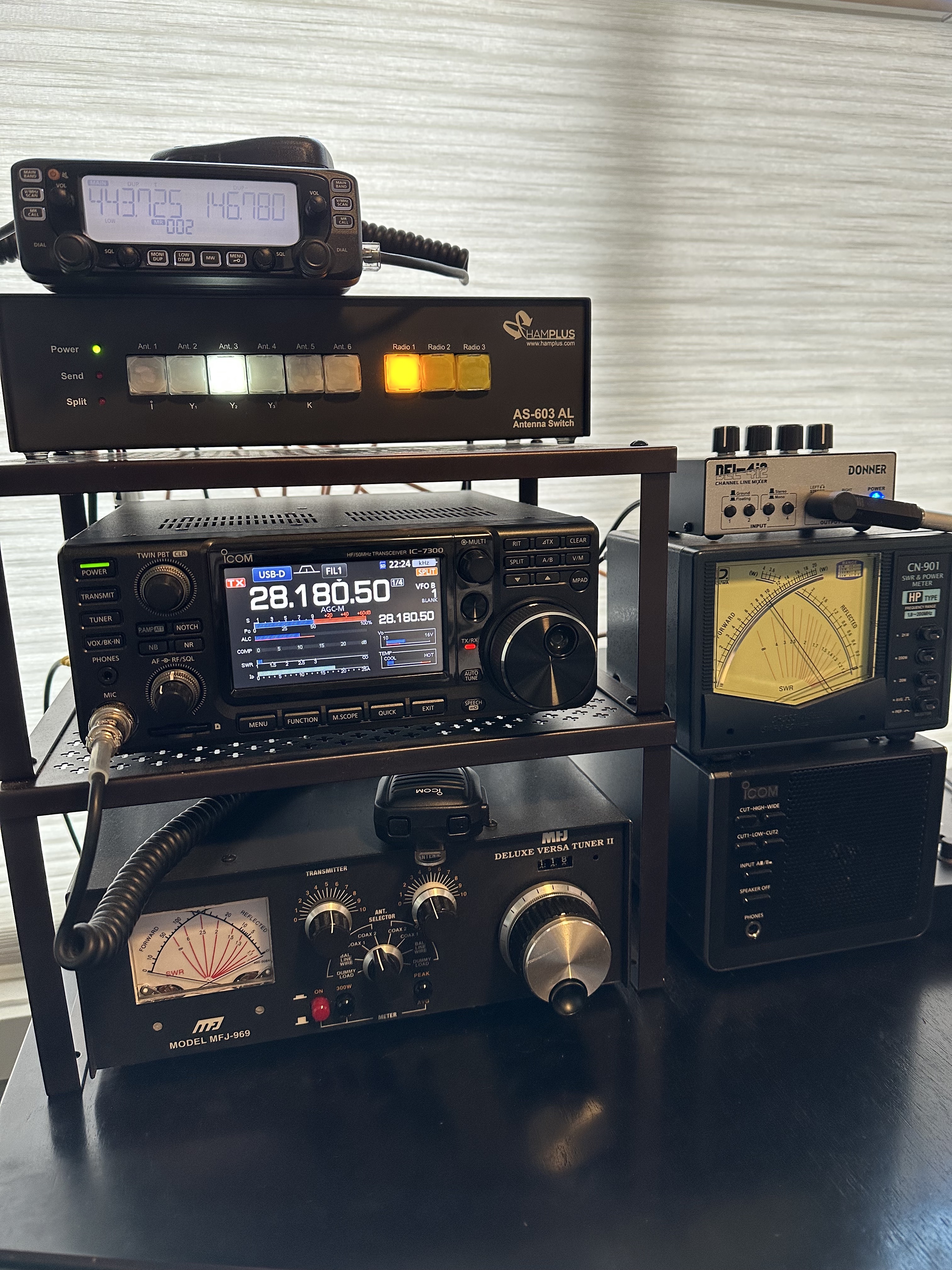

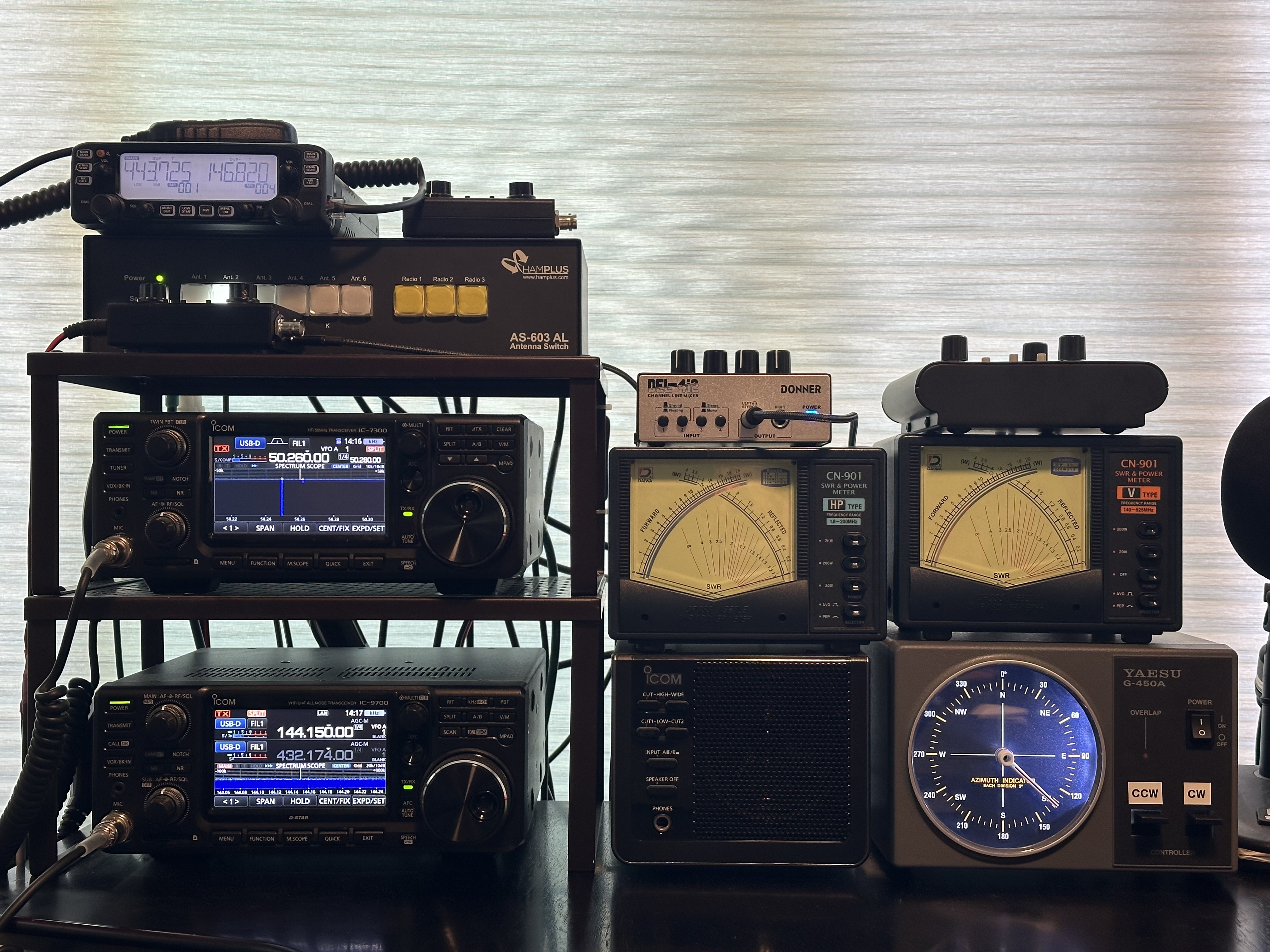

Station equipment

• Icom 7300 transceiver (HF/6m)
• Icom 9700 transceiver (2m/440/1.2 GHz)
• Icom 2730 transceiver (2m/440 FM)
• Icom SP-41 speaker
• HamPlus AS-603AL antenna switch (6 antennæ, 3 radios, 1 amplifier)
• Daiwa CN-901 power meter
• MFJ 969 antenna tuner

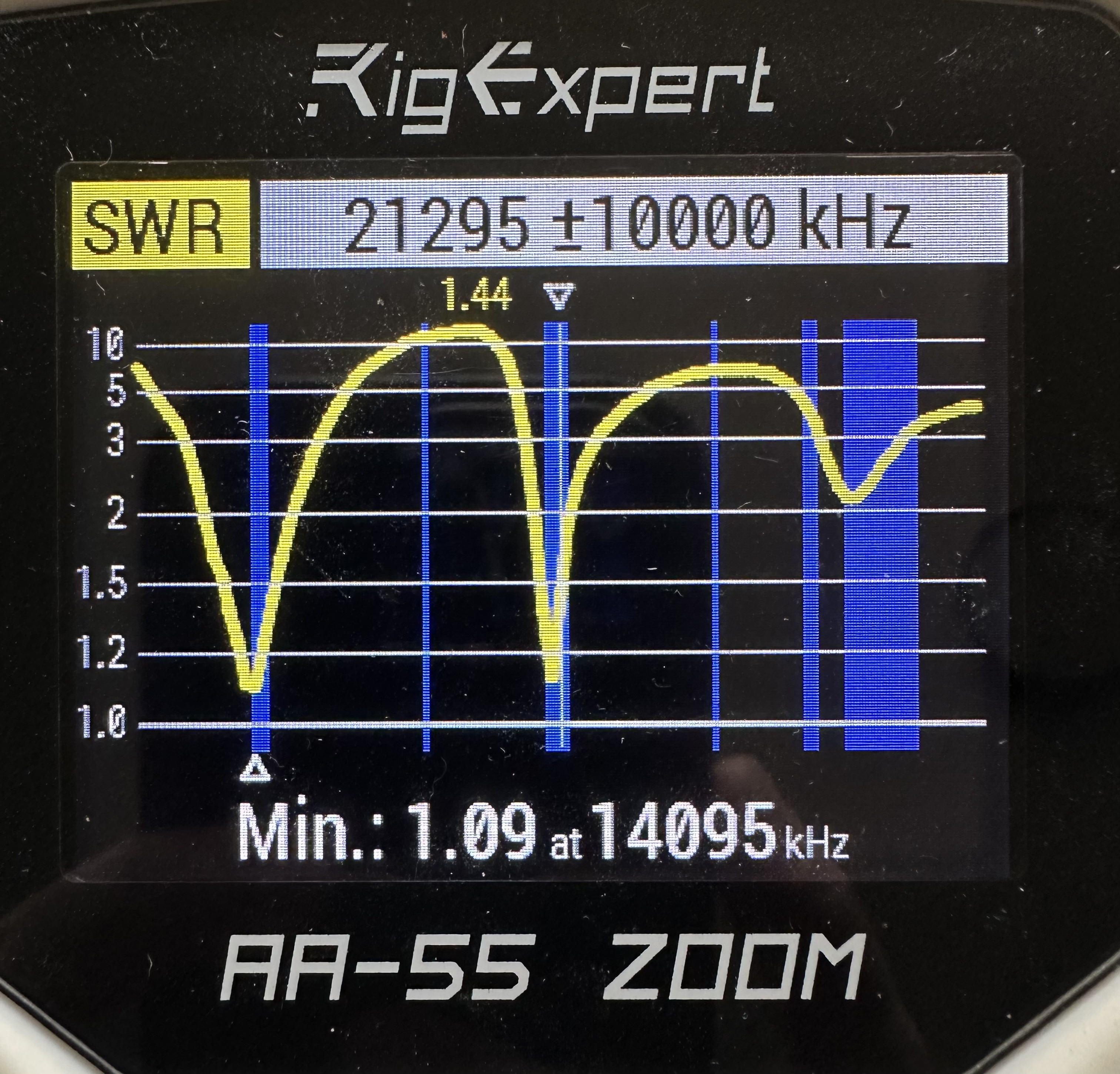

• RigExpert AA-55 antenna analyzer


• Palomar Engineers end-fed antenna (9:1 unun, 55 feet of wire plus two 15-foot counterpoises)

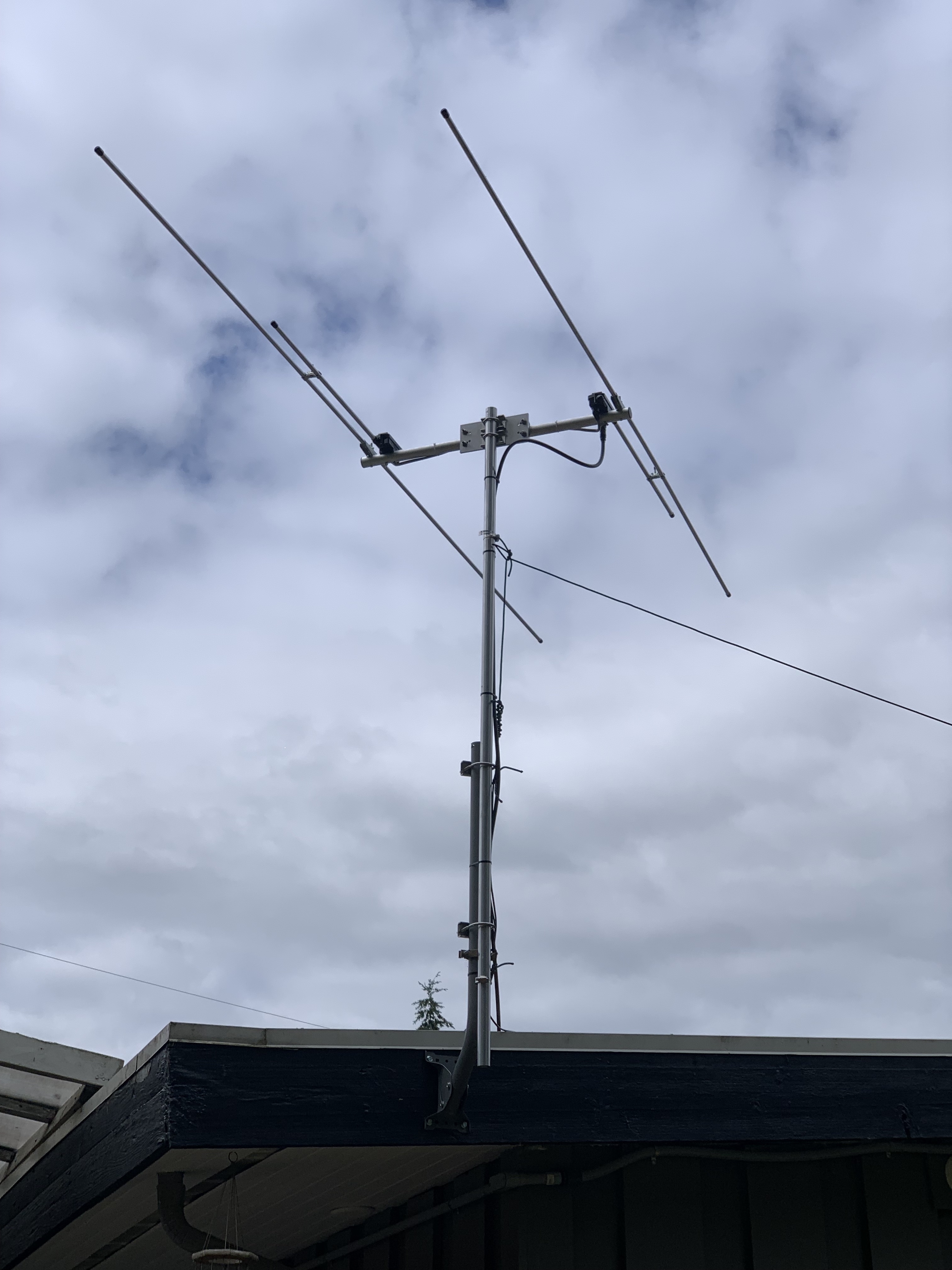

• Diamond A502HB antenna (6m beam, two elements, used fixed with no rotator)

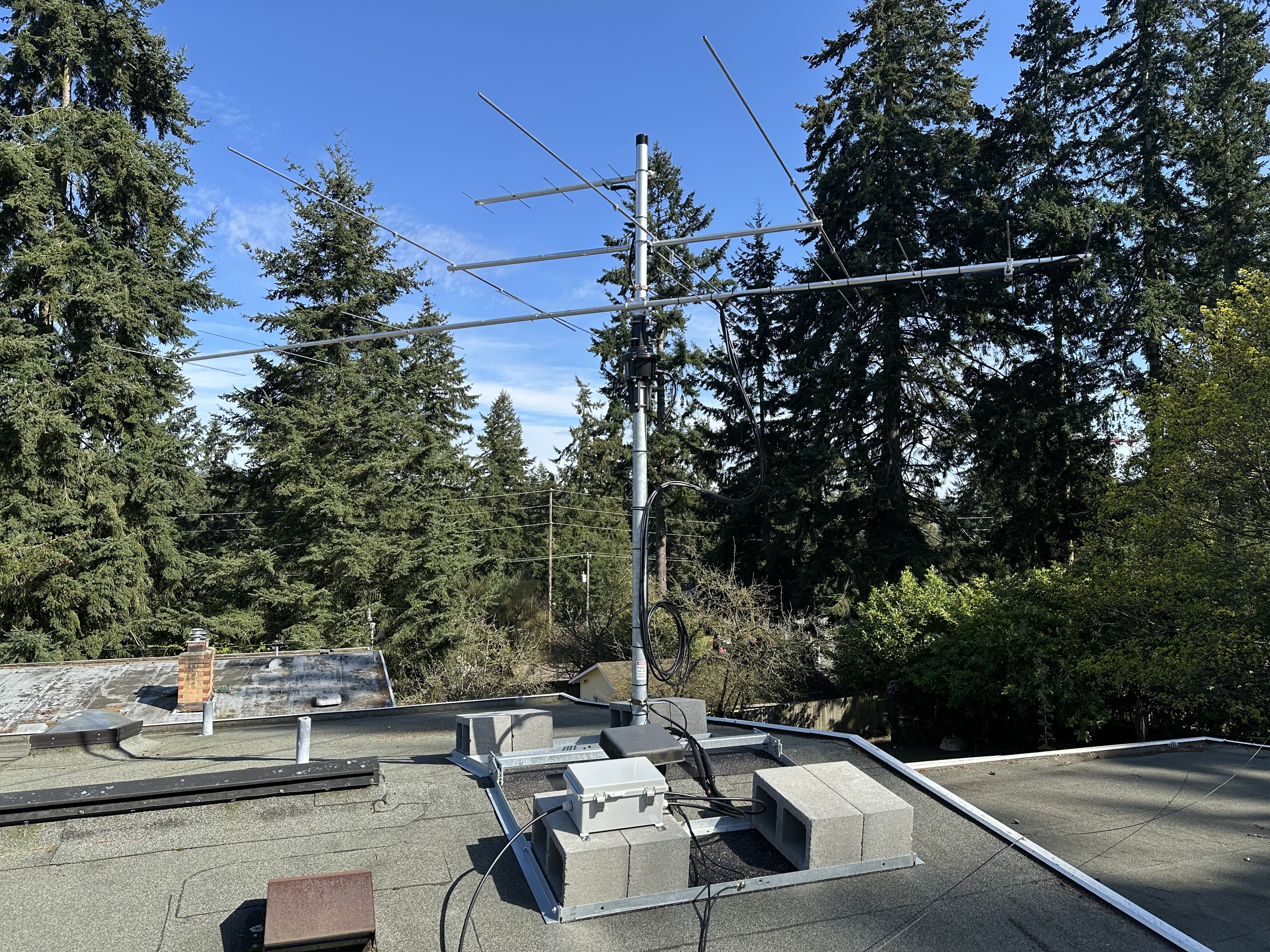

• Cushcraft AR-270 antenna (2m/440 vertical)
• Buddipole Deluxe with many extra parts (long mast, 32-inch arms, 9.5-foot whips, beam kit)


• Time Machines TM1000A GPS-synchronized NTP time server and TM160 POE NTP clock
• Tallysman TW3142 active GPS radome antenna

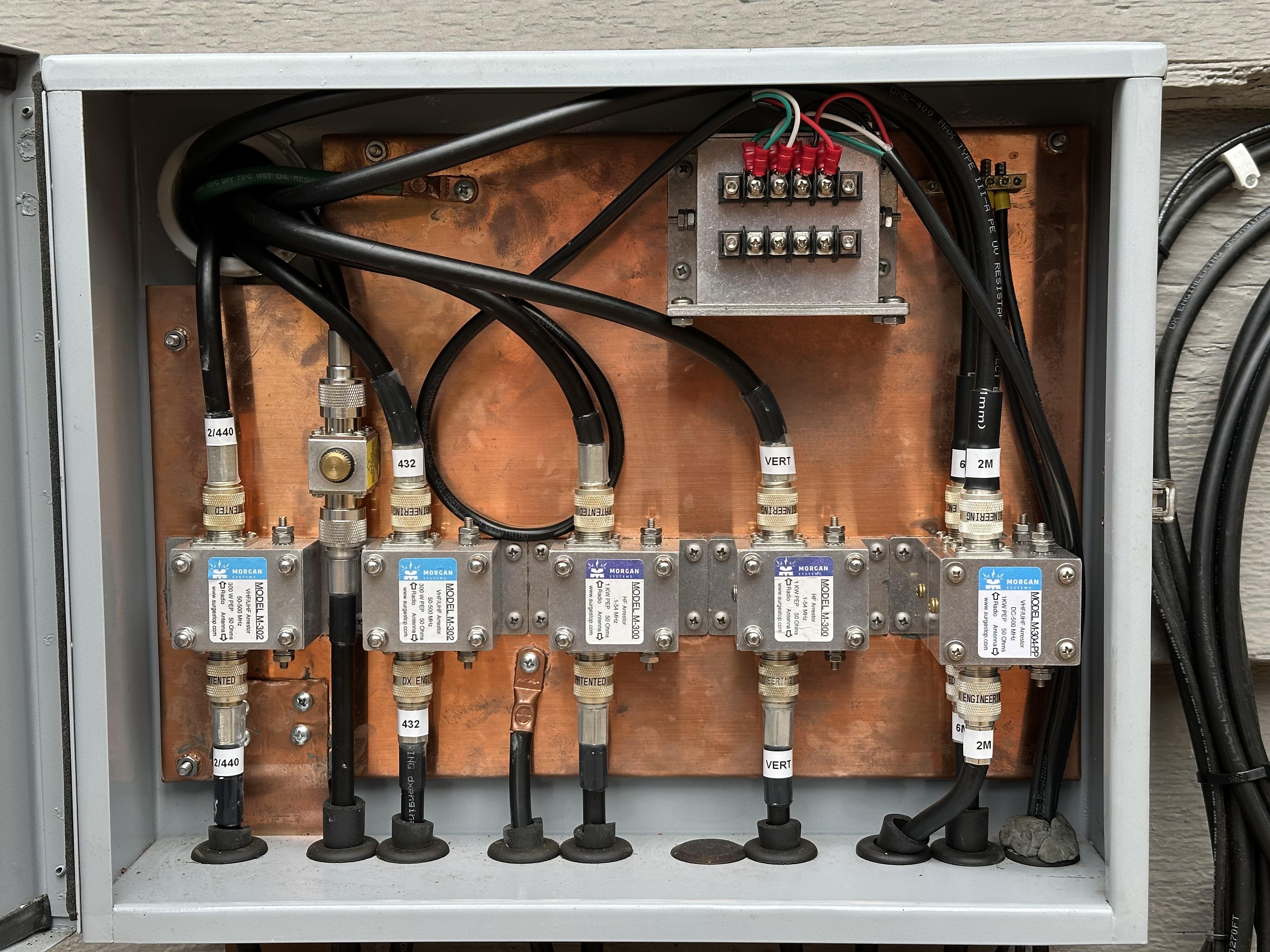

• KF7P entrance panel outfitted with Morgan Systems and Alpha Delta lightning arrestors
• redundant DC power system


• Heil Sound PR-10 desk microphone
• ART Tube MP Studio V3 microphone preamp
• Donner DEL-4i2 four-channel audio mixer

Station photographs

Past stations

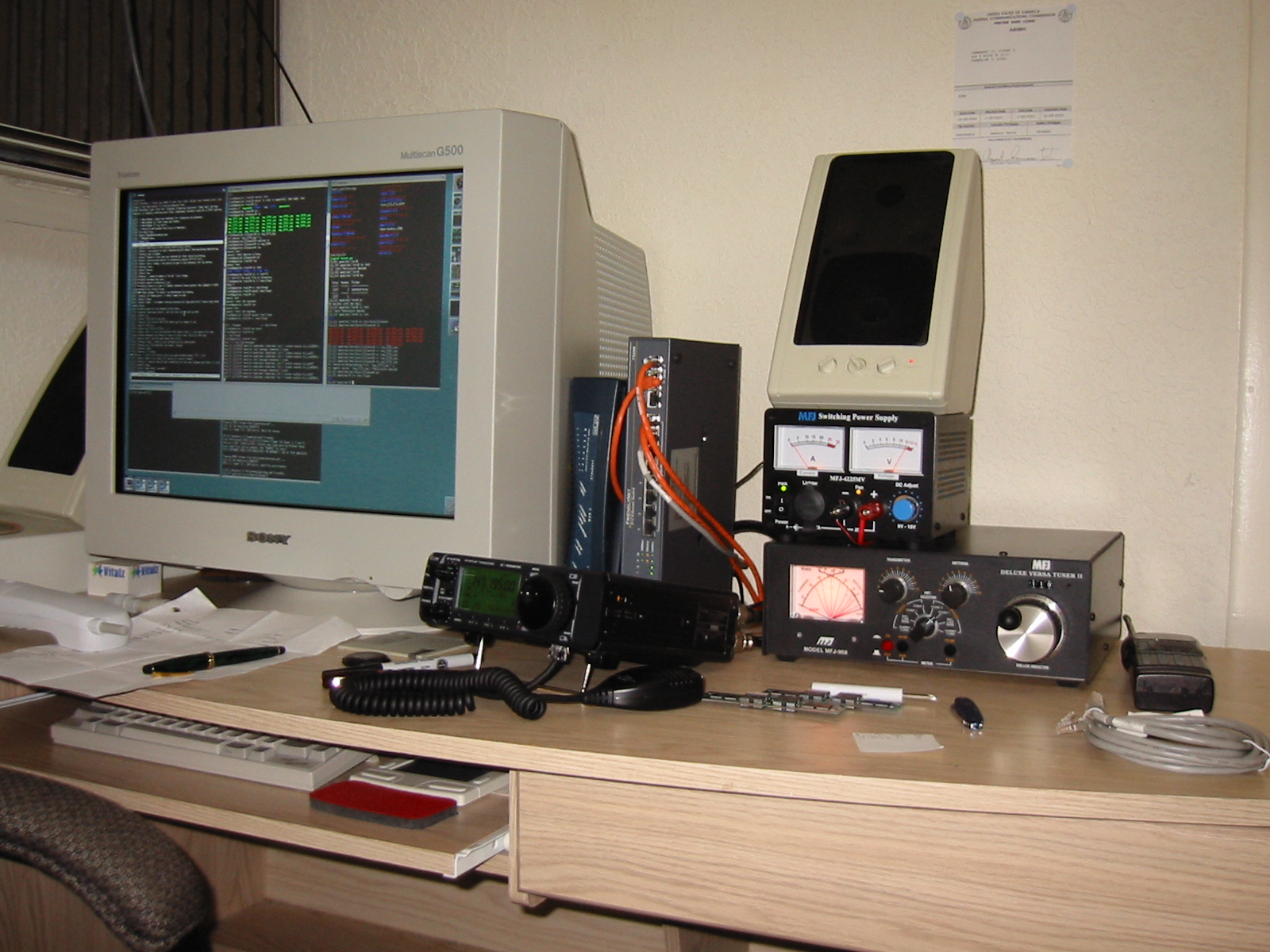

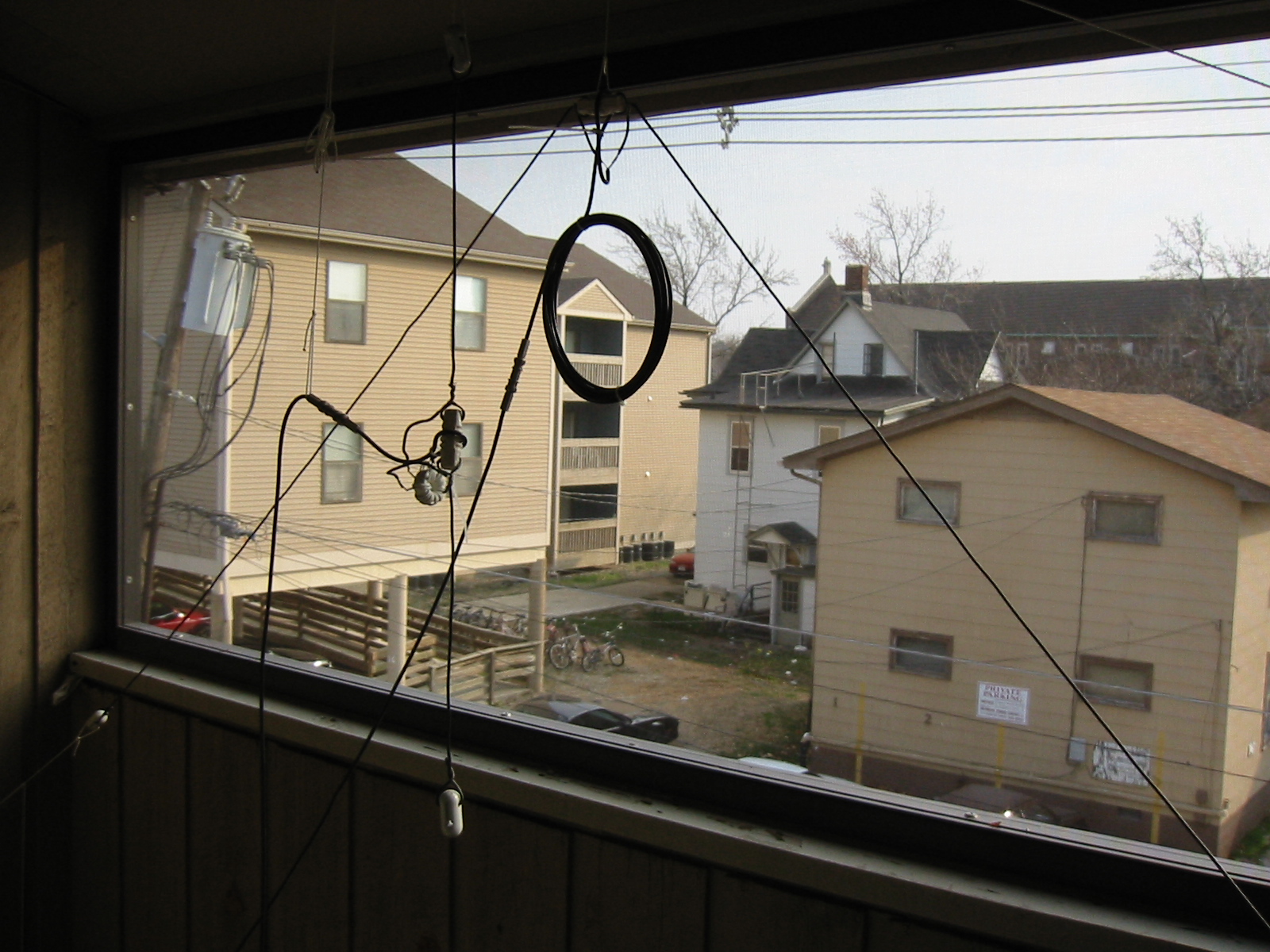

My first station was in a campus apartment in graduate school. I had an Icom 706MKIIG connected to an AH-4 automatic random wire tuner (with a 30-foot or so wire running around my ceiling) and an MFJ 969 antenna tuner for a 6m inverted vee on my balcony. I also had a 2m vertical dipole. Since I was on the third floor of three, my antennæ were up about 30 feet or so. Due to excellent propagation in 2001, I worked stations all over South America and Europe and a few in Africa and Asia with that setup.

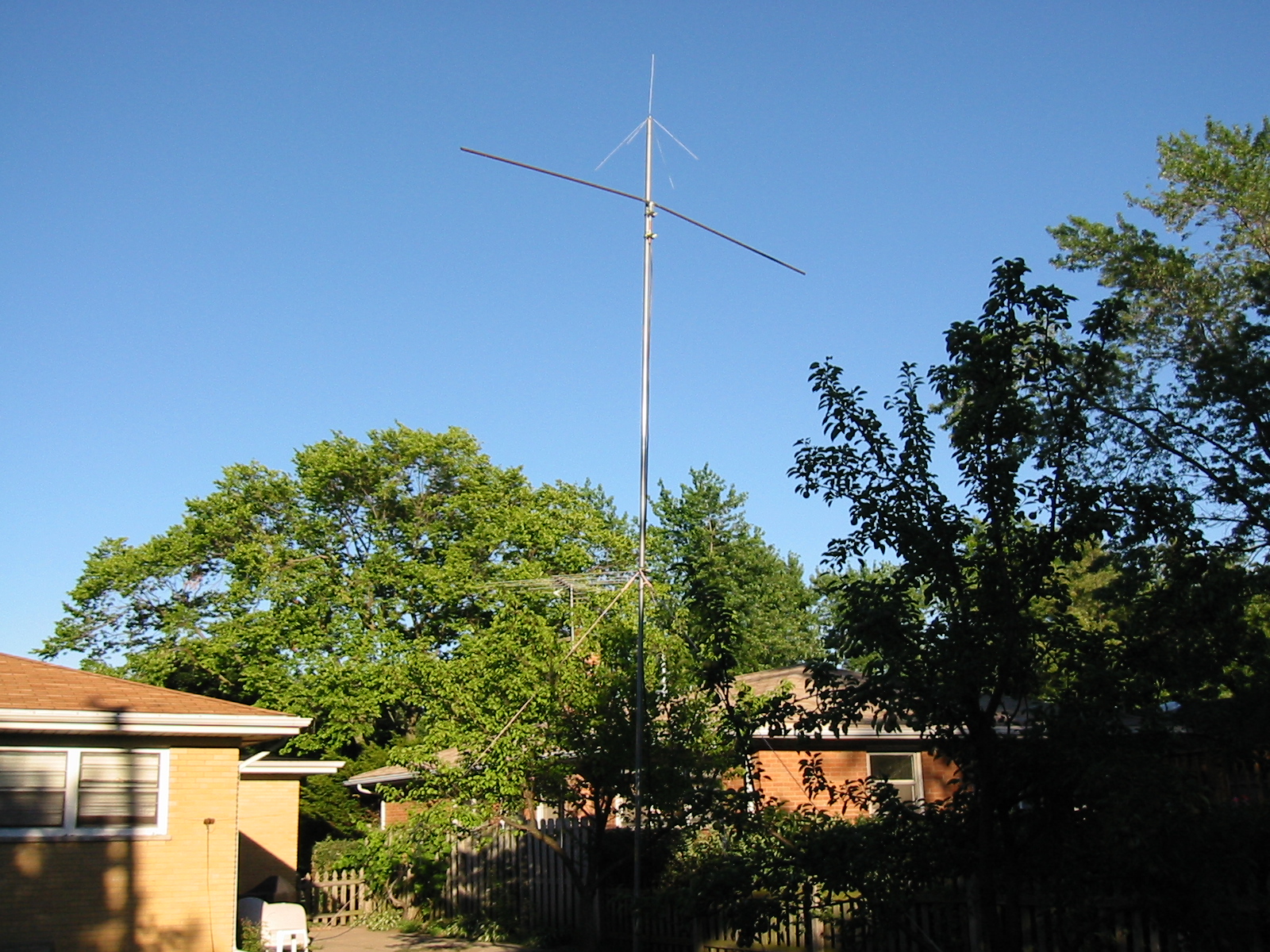

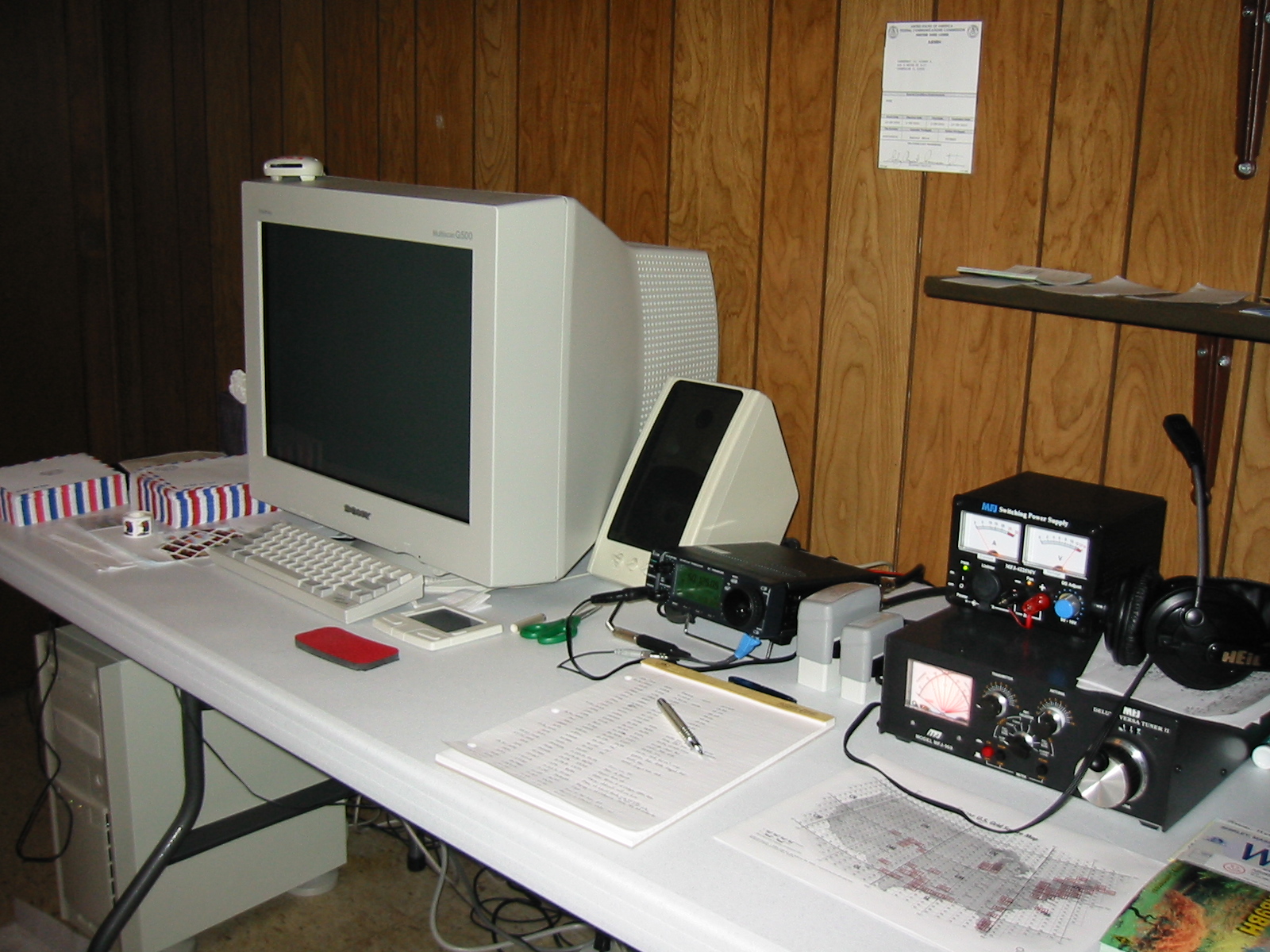

During the summer of 2001, I lived in Park Ridge, Illinois where I had a bit different of a setup thanks to a tripod and a bit of mast. I had a 2m ground plane at 20 feet, a 6m dipole at 18 feet, and a 20m dipole at 8 feet. I probably should have figured out a way to string up a 20m inverted vee with the apex supported by the mast. With this station, I worked stations all over South America and Europe, several in Asia, one in Africa, a VK, and a ZL on 20m. I also worked a lot of grid squares on 6m.

My friend Greg and I once took over the University of Illinois's Synton Amateur Radio Club, W9YH, one of the oldest Registered Student Organizations associated with the University, founded in 1925.

---
